Beyond Stone Management
menovex's Vertical integration Delivers
Unmatched Physician Control

menovex® tamburo

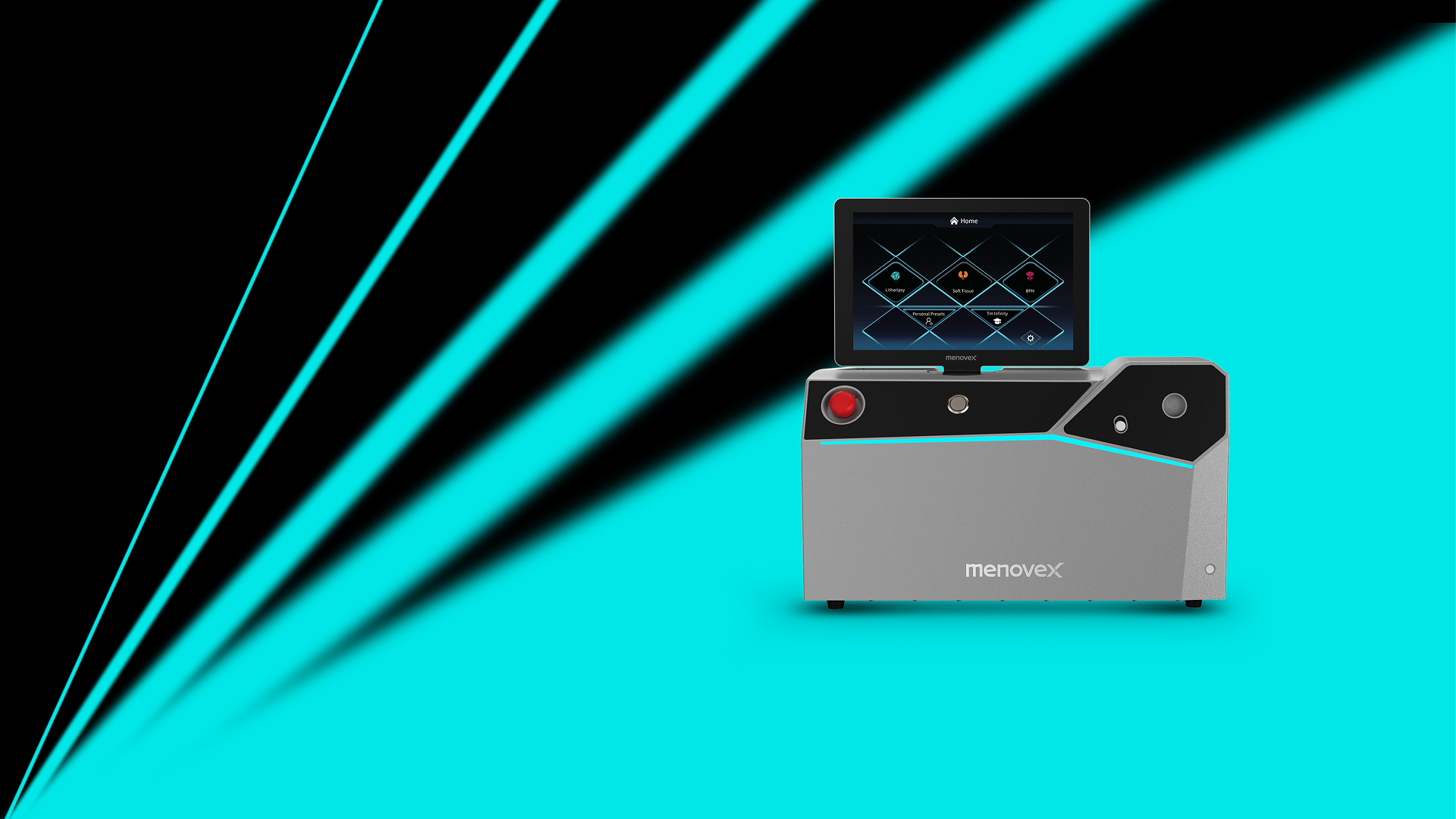

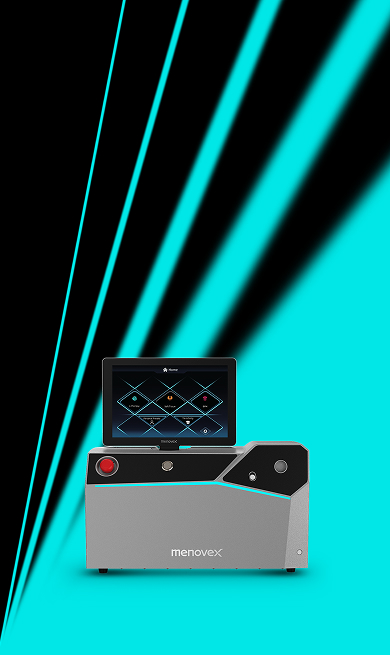

tamburo Thulium Fiber Laser System

Small machine, High energy,
The ideal dual solution for lithotripsy & BPH enucleation.

The tamburo is an advanced Thulium fiber laser system designed for urological applications.
Operating at a wavelength of 1940 nm, this versatile device is engineered for a wide range of
clinical tasks including stone management and soft tissue dissection.

tamburo Premium

MIL-TFL-600A

Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 60W
Pulse Energy
0.025-6J
Operating mode
Pulsed/CW
Pulse duration
200μs - 50ms
Repetition rate
1-2400Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
1.08m

tamburo Pro

MIL-TFL-600B

Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 60W
Pulse Energy
0.025-6J
Operating mode
Pulsed
Pulse duration
200μs - 50ms
Repetition rate
1-2400Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
0.61m

tamburo Lite

MIL-TFL-600C

Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 40W
Pulse Energy
0.025-4J
Operating mode
Pulsed
Pulse duration
200μs - 33ms
Repetition rate
1-1600Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
0.50m
Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 60W
Pulse Energy
0.025-6J
Operating mode
Pulsed/CW
Pulse duration
200μs - 50ms
Repetition rate
1-2400Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
1.08m
Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 60W
Pulse Energy
0.025-6J
Operating mode
Pulsed
Pulse duration
200μs - 50ms
Repetition rate
1-2400Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
0.61m
Specifications
Laser Classification
IEC/EN 60825-1
Class 4
Aiming beam classification
IEC/EN 60825-1
Class 3R
Laser Type
Thulium Fiber Laser
Wavelength
1940 nm±20 nm
Average power
Up to 40W
Pulse Energy
0.025-4J
Operating mode
Pulsed
Pulse duration
200μs - 33ms
Repetition rate
1-1600Hz
Beam divergence
16°
Aiming Beam Pulse Frequency
Green, 510 - 530 nm,
power adjustable 0-5 mW
MPE
(Maximum Permissible Exposure)
1000 W/m2
Glasses specification
1940 D LB4
NOHD
(Nominal Ocular Hazard Distance)
0.50m

menovex® tamburo

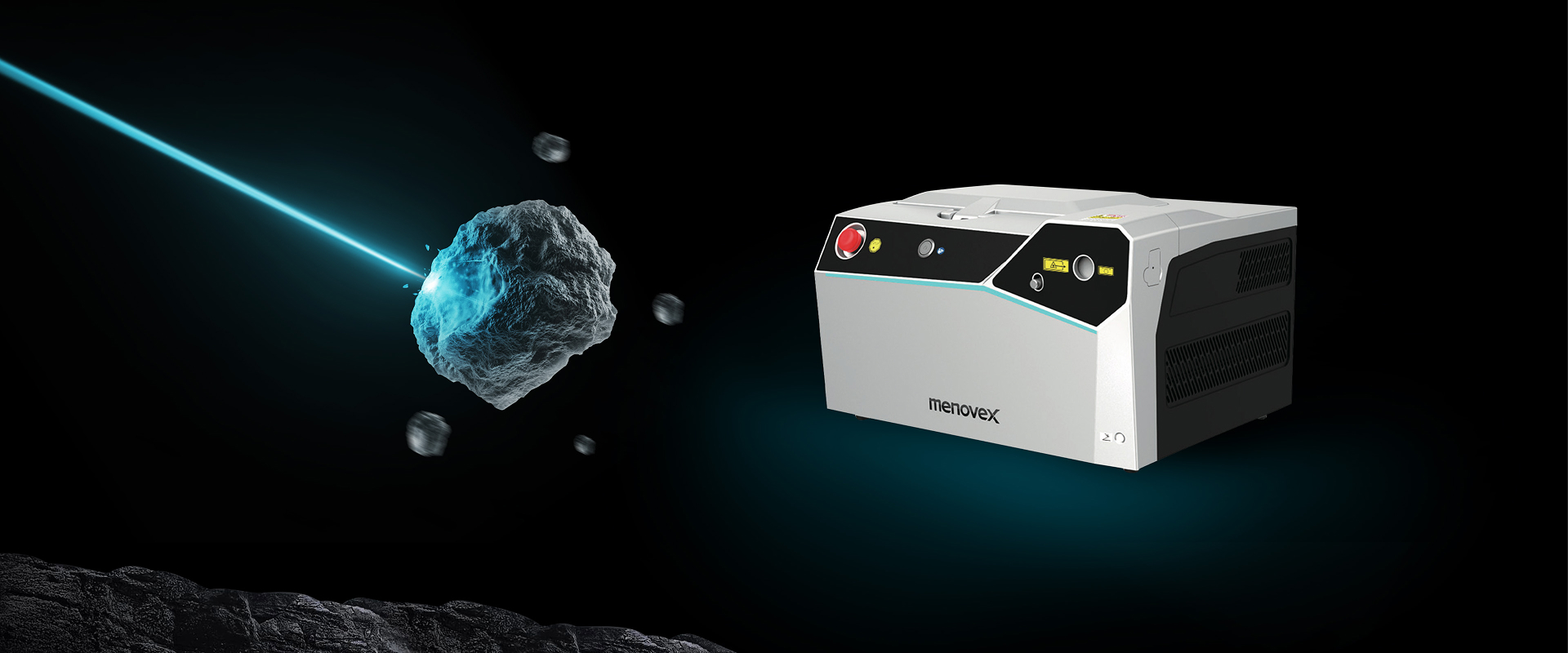

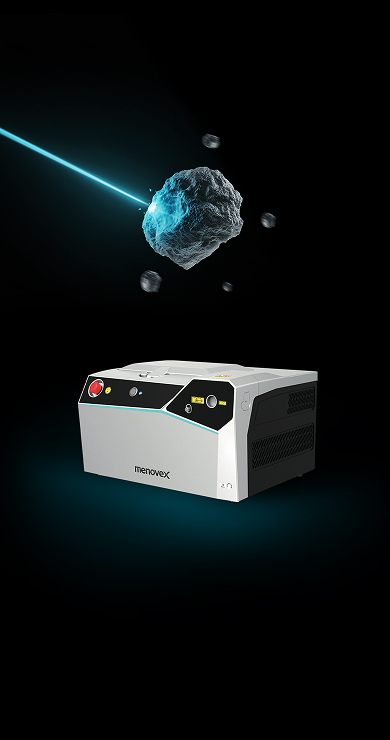

Laser System-Stone

Video
Laser system-Stone

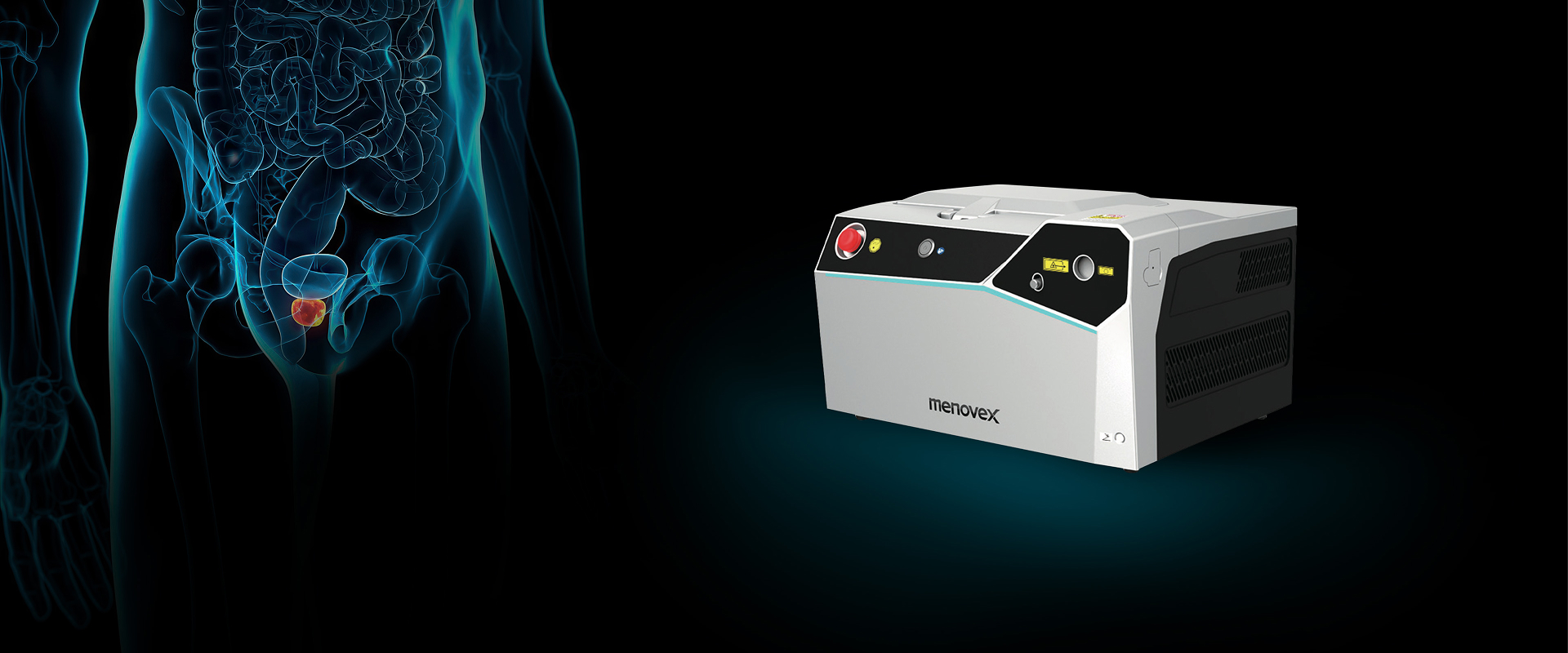

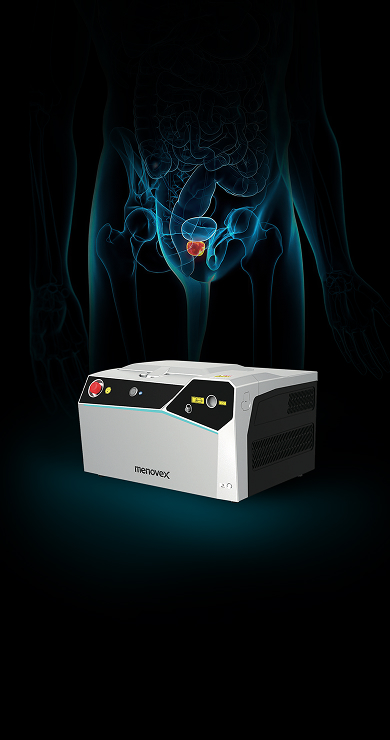

Laser system-BPH

Compatible with even
150μm optical fibers

The 150μm ultra-fine optical fiber can be used in conjunction with the flexible scope surgery, and the flexible lens can achieve free deflection and maintain better water circulation.

Faster rate of lithotripsy

stone ablation rate is 2-3 times that of holmium laser with the 1.6 times stone removal efficiency than holmium laser.

There are two types
lithotripsy methods

Ultra-high frequency, long pulse width lithotripsy, can make the diameter of stone powder < 250μm, to achieve ultra-fine powdering.
Low-frequency, short-pulse width lithotripsy can make stones super-pulse clastic, and high efficiency lithotripsy.

Practically no retropulsion

Compared with traditional holmium lasers, larger pulse durations, faster frequencies, and lower pulses.
Peak power enables less stone retropulsion and in-situ lithotripsy.

Better cutting mode
combination

Continuous and super-pulsed dual-mode outputs Vaporization, ablation and cleavage under different tissues and surgical procedures are met Continuous output, smooth cutting effect, better coagulation effect, stronger hemostasis ability Pulse output, high peak power blasting, achieve capsule-gland blunt separation, while achieving rapid hemostasis with less charring.

Safer BPH
enucleation

The thulium fiber laser tissue penetration depth is 0.1mm, which can effectively reduce intraoperative pairs and allows for rapid continuous output for effective coagulation. Make no severe tissue edema, necrosis, irritation symptoms such as slough formation, and the patient recovers quickly after surgery.

Swivel Touchscreen

1

Air-Cooled System

2

Multi-Functional Cart

3

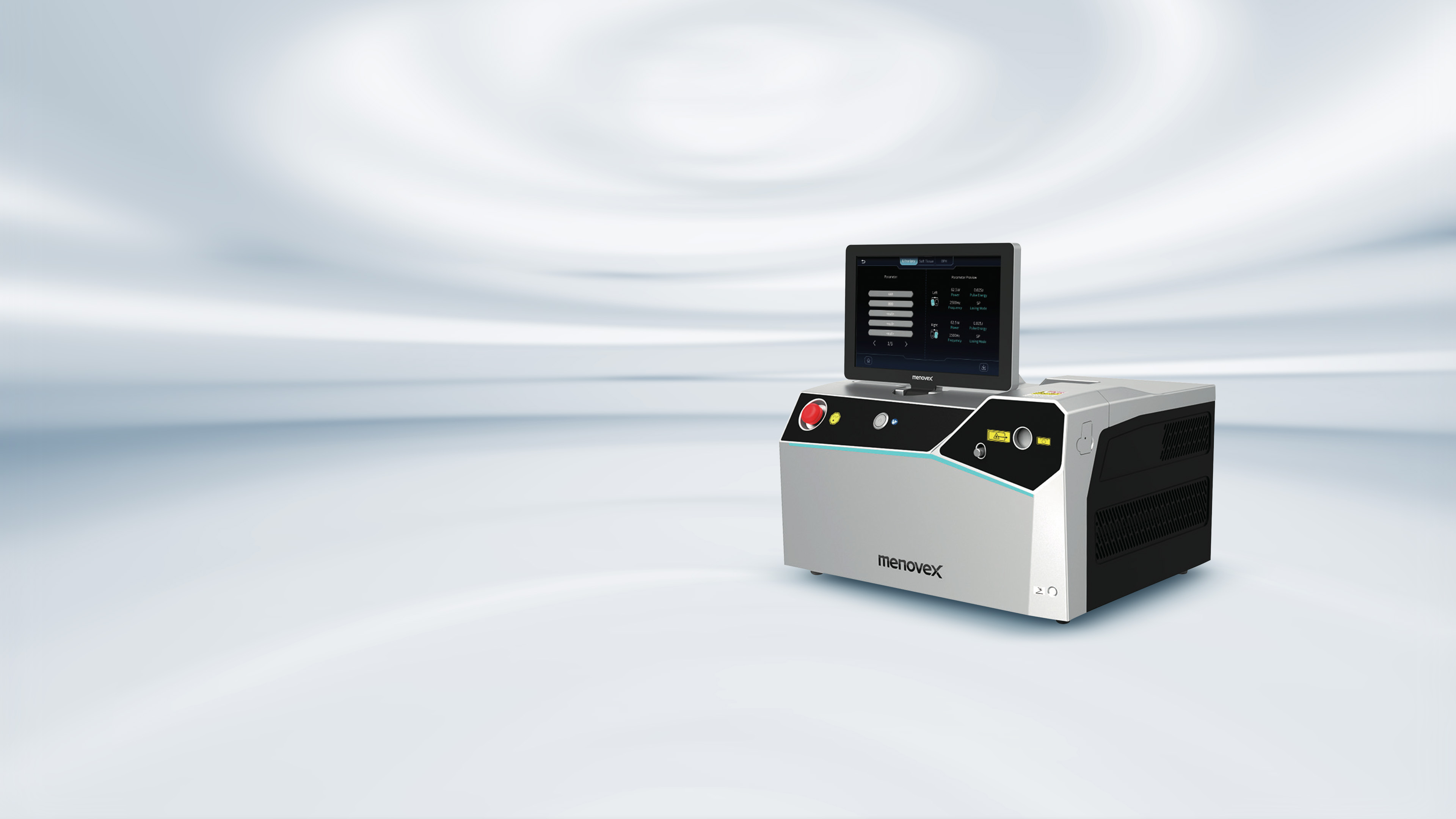

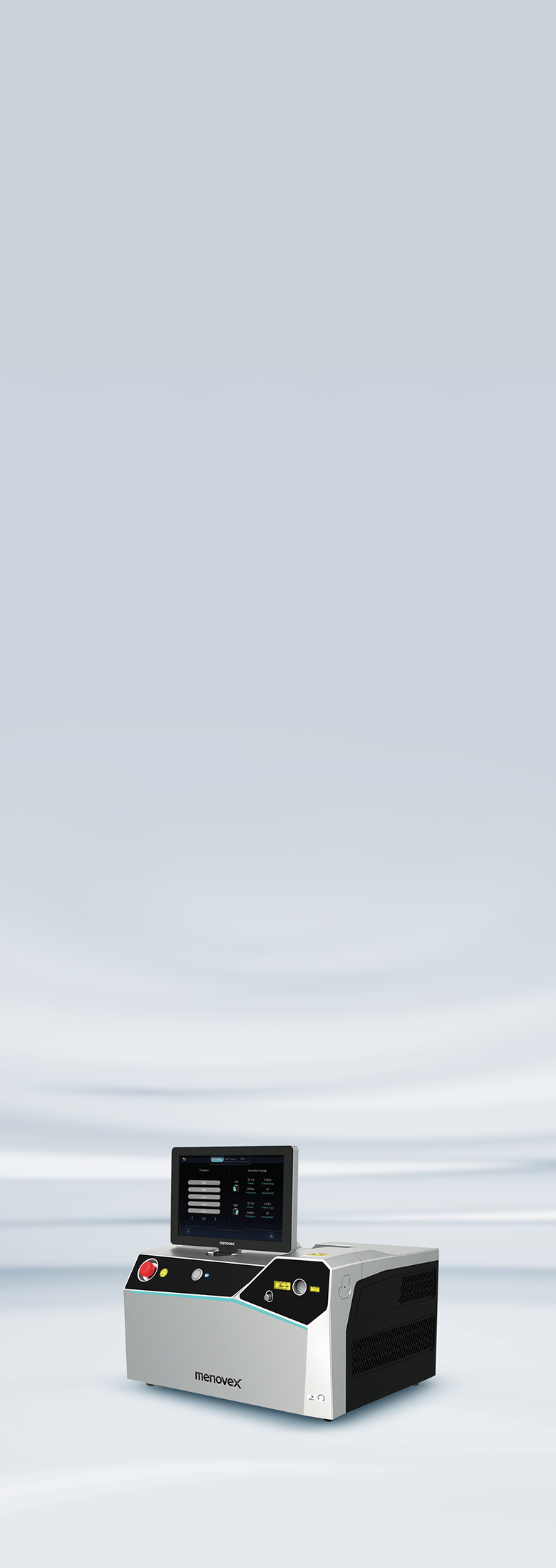

menovex® tamburo

Quick Guide

General Specification
Laser Specifications
Product category
Surgical Laser for
Medical Use
Weight
≤43kg
Classification of Medical Device
Directive 93/42/EEC
Class IIb
Operating temperature
10°C−30°C
Electrical Requirements
100-240V~at 980VA
50/60 Hz
Storage/
Transport temperature
-20°C -55°C
Type of protection against
electric shock
Class I
Cooling system
Air cooling system
Degree of liquid ingress
protection
IPX8 for the footswitch
Pulse Duration
200μs-50ms
Dimension
W48×H38.5×D30(cm)
Laser Type
Thulium Fiber Laser
Pulse Duration
200μm - 50ms
Wavelength
1940 nm士20 nm
Repetition Rate
1-2400Hz
Average Power
Up to 60W
Pulse Energy
0.025-6J
Operating Mode
Pulsed / CW
General Specification
Compact Size

Powerful Energy
The support you deserve

60-watt power for auxiliary treatment.
Easily achieve efficient lithotripsy and precise enucleation of BPH.

Lightweight Body
The convenience you deserve

Lightweight, easy to deploy, and compact yet powerful.
Freely movable for enhanced surgical maneuverability.

menovex® tamburo

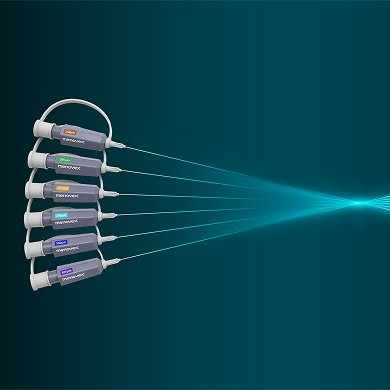

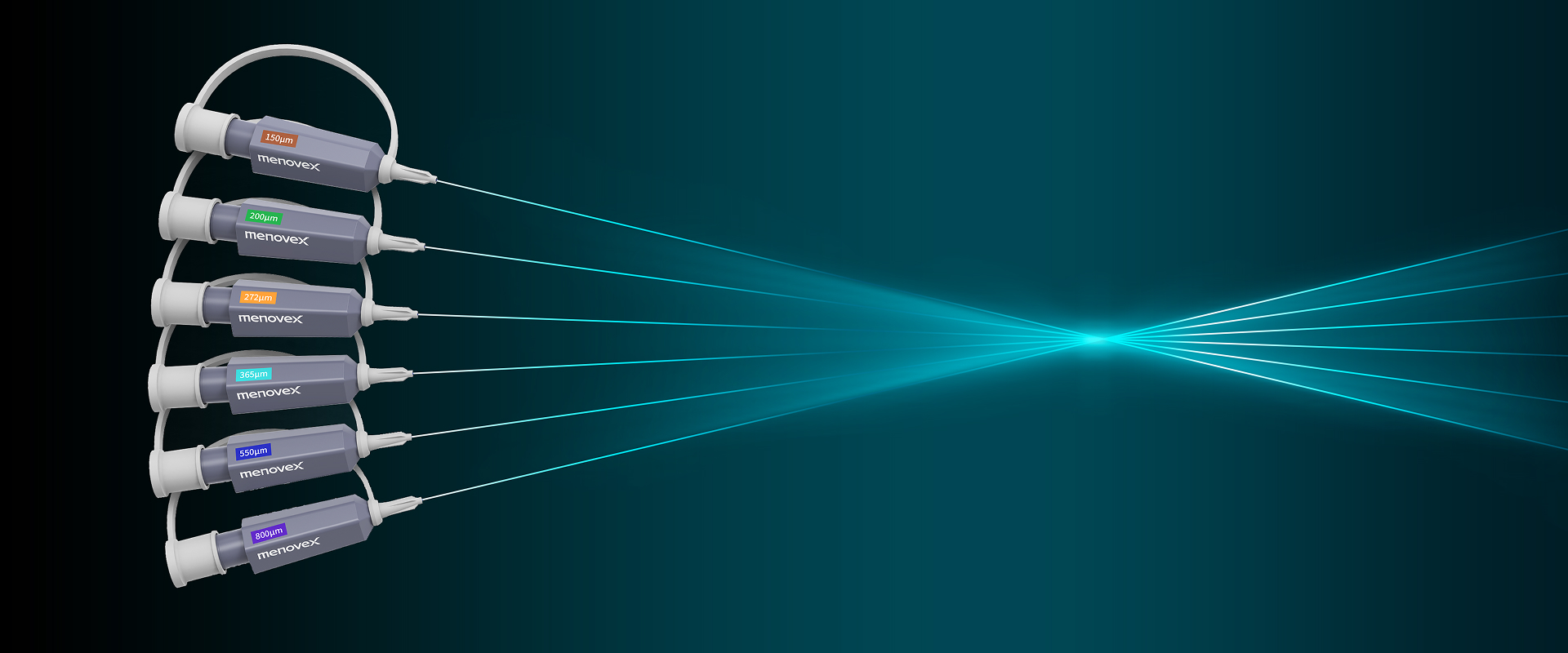

Thulium Laser Fiber

Comprehensive Procedure-Specific Portfolio

1
6 dedicated fiber types across 12 models and 6 core diameters, covering the full spectrum of urological laser applications with optimized clinical matching.Color-coded design enables instant identification, reducing setup time and minimizing the risk of procedural errors.

High-Precision Energy Performance

3
Ultra-fine 150 μm core delivers higher energy density for superior stone dusting efficiency and precise soft tissue interaction.

Smart Sterile Design with Visual Identification

2
Auto-sensing, touch-free connection combined with color-coded system enables fast setup, aseptic handling, and reduced procedural error.

Transparent Data

4
All fiber parameters are clearly displayed and accessible through the system’s interactive interface.

Designed Exclusively for Urological Laser Surgery

Laser Fiber Selection Guide

Fiber Model
Maximum Energy
(Joules)
Maximum Average
Power in Water (Watts)
Core Diameter
(μm)
Outer Diameter
(μm)
Length
(m)
SF-150-APA
4
35
150
350
3
SF-150-APA
4
35
150
350
3.5
SF-200-APA
5
60
200
380
3
SF-200-APA
5
60
200
380
3.5
SF-272-APA
6
60
272
420
3
SF-272-APA
6
60
272
420
3.5
SF-365-APA
6
60
365
550
3
SF-365-APA
6
60
365
550
3.5
SF-550-APA
6
60
550
750
3
SF-550-APA
6
60
550
750
3.5
SF-800-APA
6
60
800
1100
3
SF-800-APA
6
60
800
1100
3.5
